ANSI B18
|
ANSI B18.3 19869
|

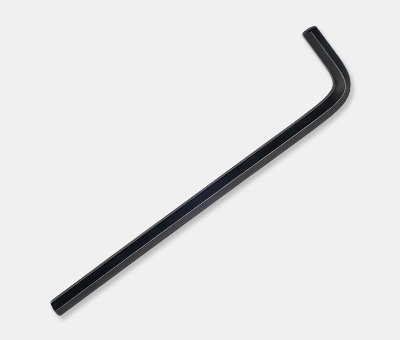

EXTRA LONG ARM
|
|
ITEM NO.
|
|
|
Tip
|
Length
|
Finish
|
Code
|
Material
|
Size
|
L1
|
L2
|
Pc/g
|
Packing
|
|
HW
or
BP
|
3
|
B
N
S
M
R
P
|
1005
|
CV
S2
|
0.05
|
88
|
12
|
1.07
|
2000/2.1/2.6/0.4'
|
|
1116
|
1/16
|
90
|
14
|
1.77
|
2000/3.5/4.0/0.4'
|
|
1564
|
5/64
|
100
|
16
|
3.1
|
2000/6.2/6.7/0.4'
|
|
1332
|
3/32
|
112
|
18
|
5.6
|
2000/11.2/11.7/0.4'
|
|
1764
|
7/64
|
120
|
19
|
7.33
|
2000/14.7/15.2/0.4'
|
|
1018
|
1/8
|
126
|
20
|
9.8
|
1000/9.8/10.3/0.4'
|
|
1964
|
9/64
|
130
|
23
|
13.85
|
1000/13.9/14.4/0.4'
|
|
1532
|
5/32
|
140
|
25
|
16.8
|
500/8.4/8.9/0.4'
|
|
1316
|
3/16
|
160
|
28
|
28.4
|
500/14.2/14.7/0.4'
|
|
1732
|
7/32
|
170
|
30
|
42.5
|
500/21.3/21.8/0.4'
|
|
1014
|
1/4
|
180
|
32
|
57
|
300/17.1/17.6/0.5'
|
|
1516
|
5/16
|
200
|
36
|
99
|
200/19.8/20.3/0.5'
|
|
1038
|
3/8
|
224
|
40
|
160.4
|
100/16.0/16.6/0.5'
|
|
1716
|
CV
|
7/16
|
237
|
42
|
238
|
80/19.1/19.6/0.5'
|
|
1012
|
1/2
|
250
|
45
|
329.1
|
75/24.7/25.2/0.5'
|
|
1916
|
9/16
|
280
|
56
|
475
|
50/23.8/24.3/0.6'
|
|
1058
|
5/8
|
320
|
63
|
670
|
30/20.1/20.6/0.6'
|
|
1034
|
3/4
|
360
|
70
|
1085
|
20/21.7/22.2/0.6'
|
|
1078
|
7/8
|
400
|
80
|
1649
|
10/16.5/17.0/0.6'
|
|
1010
|
1"
|
470
|
90
|
2512.5
|
8/20.1/20.6/0.6'
|
|
